Geon VENOM60 HE PCB

Geon VENOM60 HE PCB specifications:

• Hall-Effect PCB
• Web-based firmware (https://venom.how/)
• RISC-V32 architecture applied
• Supports 8KHz polling rate / 14KHz scan rate per key
• 0.16ms latency
• Custom PCB standard specifications
• 1.6mm Thickness
• FR4 Material

Layout:

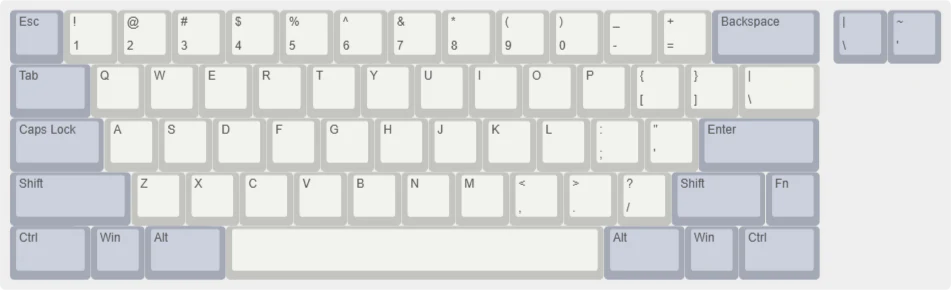

7U PCB Layout

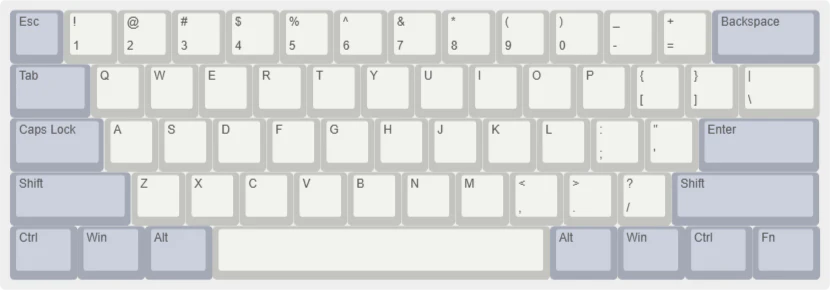

6.25U PCB Layout

Compatible Switches:

- Geon Raptor HE
- Geon RAW HE
- GATERON KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force
